36Volt, 540Wh, 15.0Ah, Samsung 21700 cell li-on
MY VALLEY

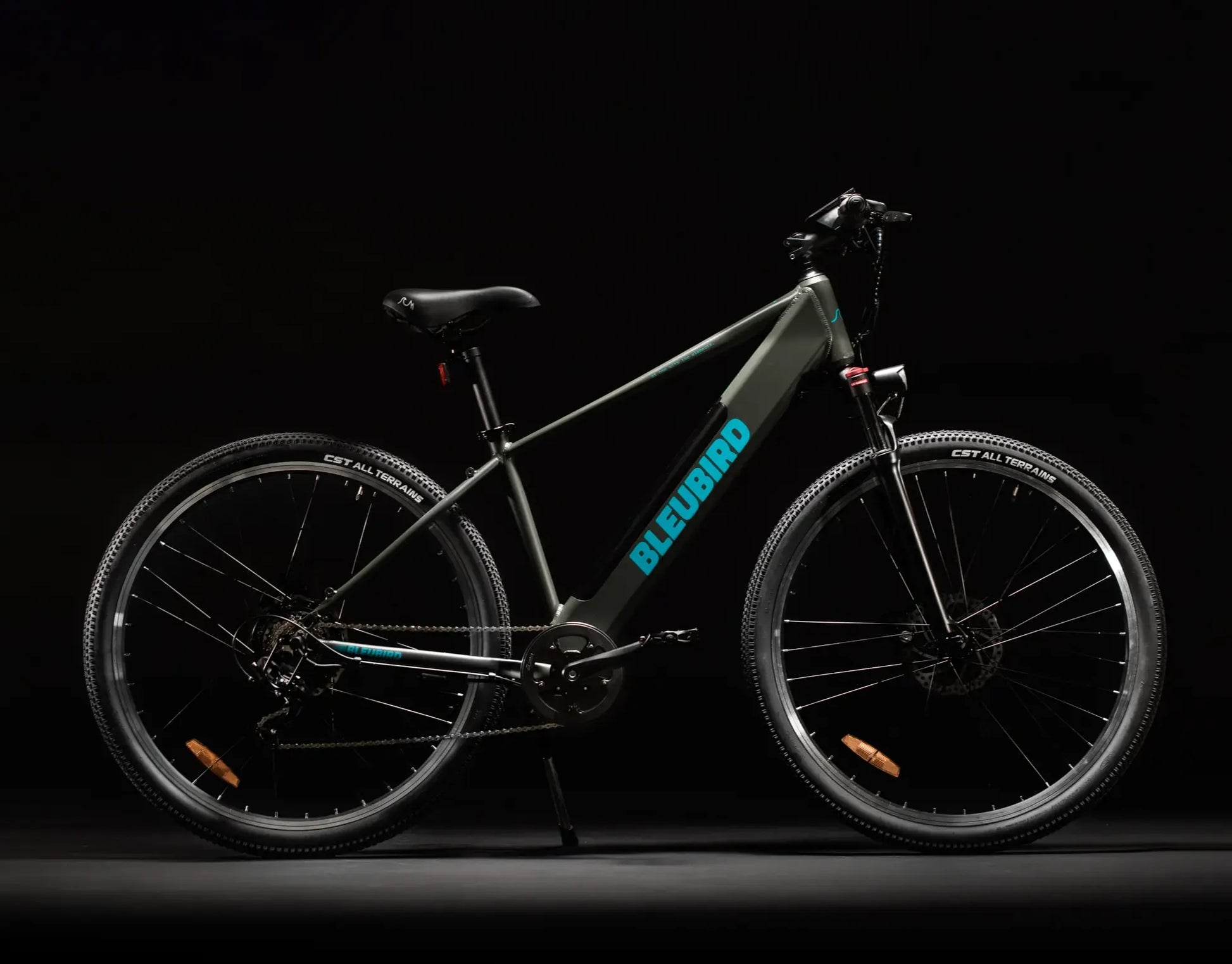

Summit: Hardtail Hybrid E-bike - Electric Bike
Summit: Hardtail Hybrid E-bike - Electric Bike
Regular price
£1,695.00 GBP
Regular price
Sale price
£1,695.00 GBP
Unit price
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Next day delivery is not available on Outdoor Equipment
Ride Further | Explore More | At One With The Elements
The Summit is our flagship e-bike, designed to allow you to ride further & explore more. A versatile hybrid hardtail e-bike which suits riders of all abilities, enabling you to escape the city and transform the way you view cycling.
Explore steeper terrain with a 45NM Bafang Motor which delivers explosive torque.
250W, 36V
Ride Further
85+KM Range
6 Hour Charge Time
Adventure in confidence with trusted components.
Samsung Battery
36V, 15AH,540WH
Main
Components

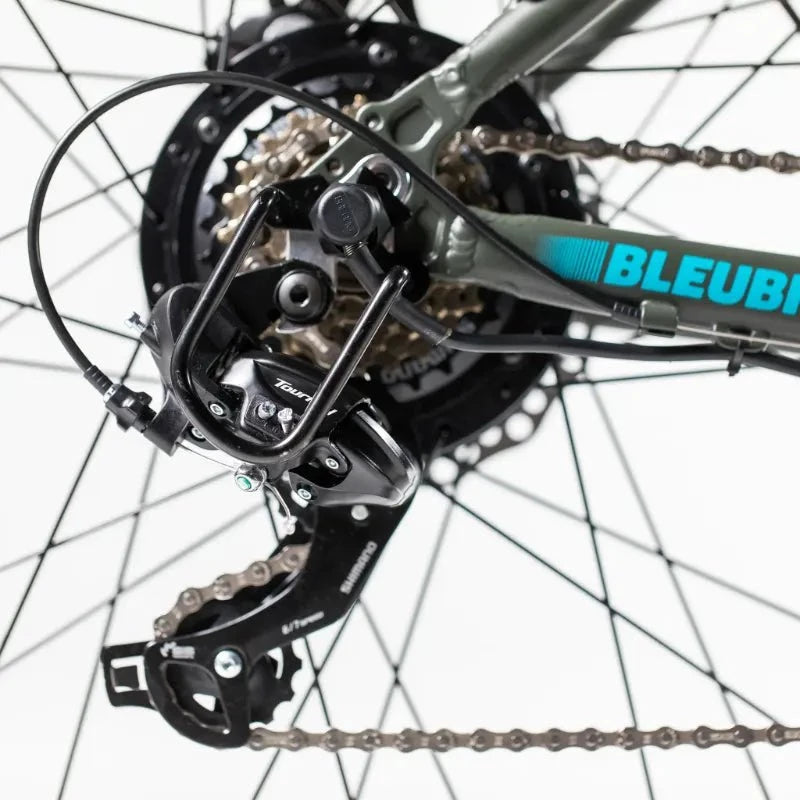

Gearing
> Shimano Tourney 7 speed
> Shimano 7 speed cassette
Quick & accurate gear shifting with Shimano 7 speed cassette and rear derailleur combination.

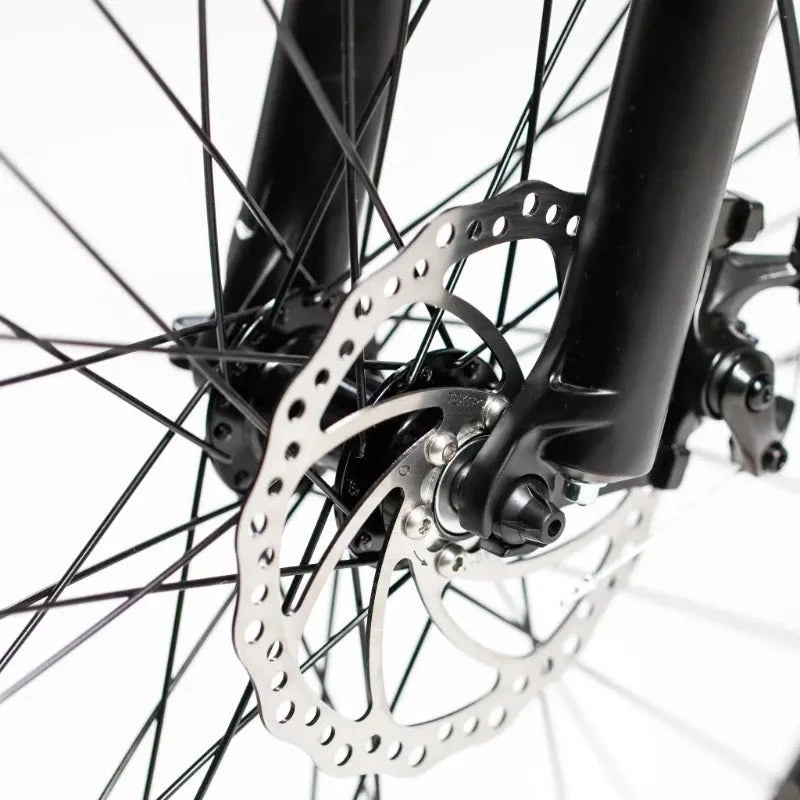

Brakes
> Tektro Aries MD-M300
> 180mm brake discs
Reliable & powerful mechanical brake system for safety & peace of mind when riding.

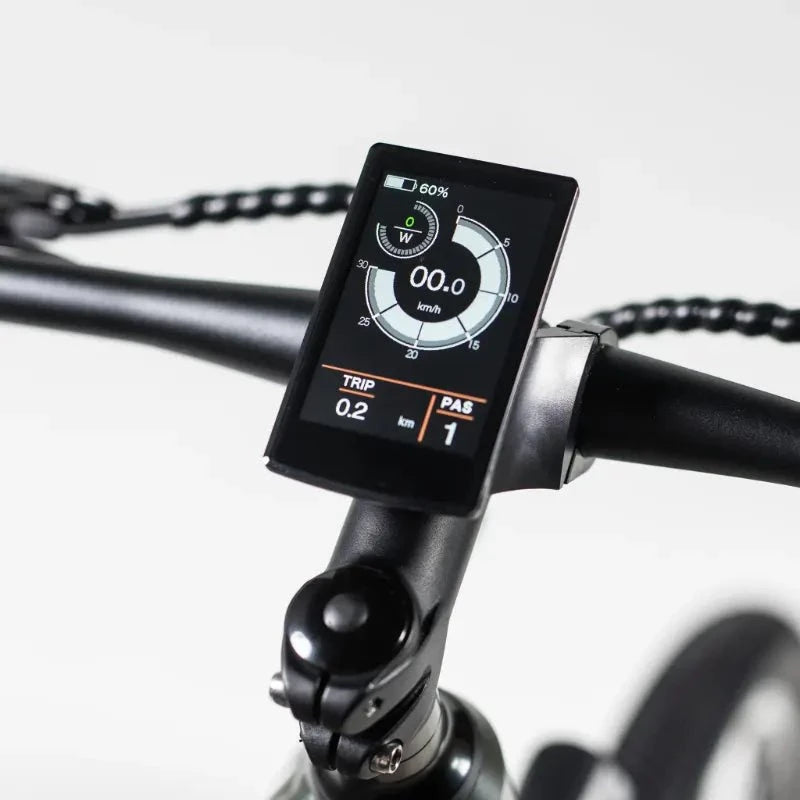

Display
> Full colour LCD display
> USB charging output
Customisable settings with multiple instrument readings including speed, trip data & power output.
Display
> Full colour LCD display
> USB charging output
Customisable settings with multiple instrument readings including speed, trip data & power output.

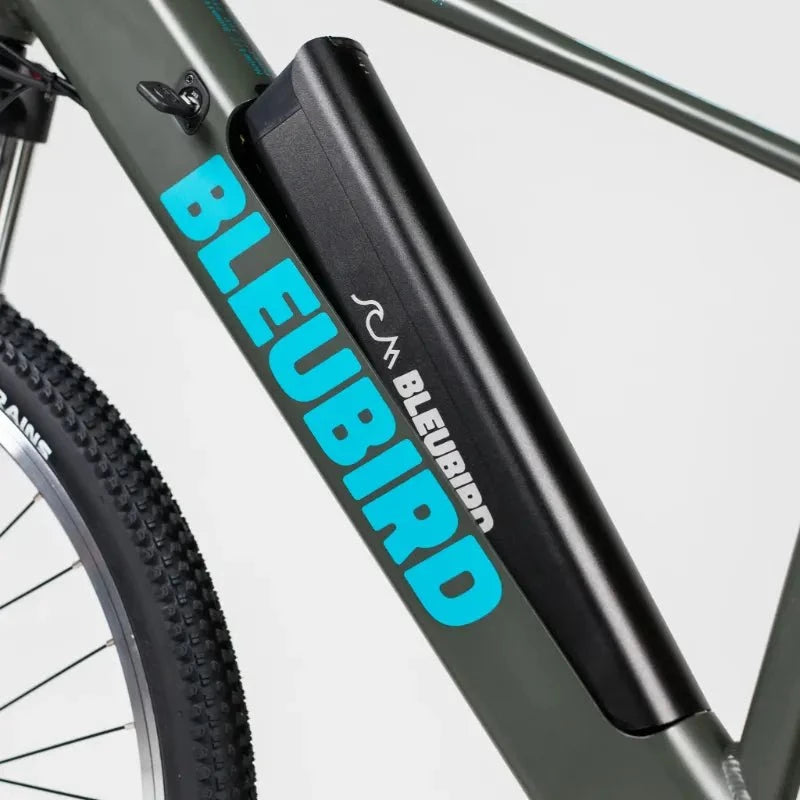

Integrated Battery
> 36V 15AH Samsung battery
> 540WH - 85km+ range
The Samsung 21700 cell li-on battery is fully integrated & removable allowing for charging in situ, or out.

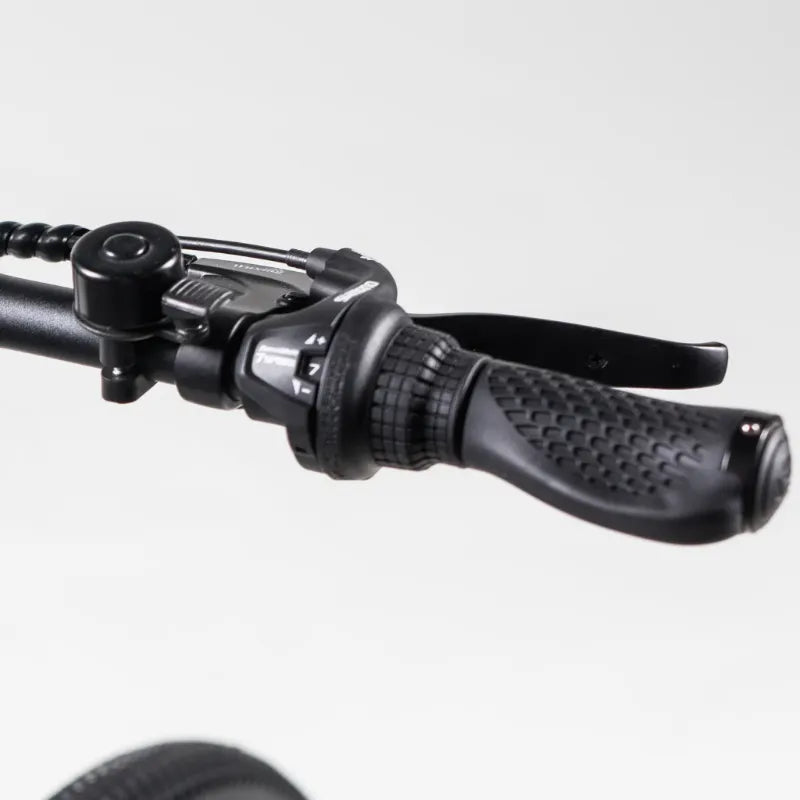

Revoshift RS25
> 7 speed Revoshift shifter
> Palm-rest ultra grip
The Shimano revoshift shifter allows for fast and easy gear changing while riding. The palm-rest ultra grip offers extra comfort & grip on long rides.
Electrical Overview
Battery
Hub Motor
250W, 36V, 45Nm Bafang rear hub
Controller
36V, 250W
Power Assist
5 Speed, 12-magnet, cadence sensor, crank mount
Range
Up to 85+ km depending on power assist levels
Top Speed
25km/h motor speed
Display
Bleubird full colour LCD
Lighting
Front mounted headlight, 40 Lux
Charging
UK plug, AC, 230V
Brake Levers
Aluminium comfort grip with integrated motor cut-off
Brake Pads
Sintered metal
Brake Calipers
Tektro Aries MD-M300
Derailleur
Shimano Tourney 7 Speed
Gear Shifter
Shimano 7 Speed Revoshift Shifter
Brake Discs
Tektro 180mm
Crank Set
170mm crank, square taper, double sided chain ring guard
Chain
KMC Z7
Cassette
Shimano 7 Speed TZ500-7
Stem
60mm
Handlebar
Black alloy 31.8 mm
Grips
Palm-rest ultra grip, rubber
Kickstand
Rear left, included
Saddle
Comfort sport
Seatpost
390mm x 27.2, quick release

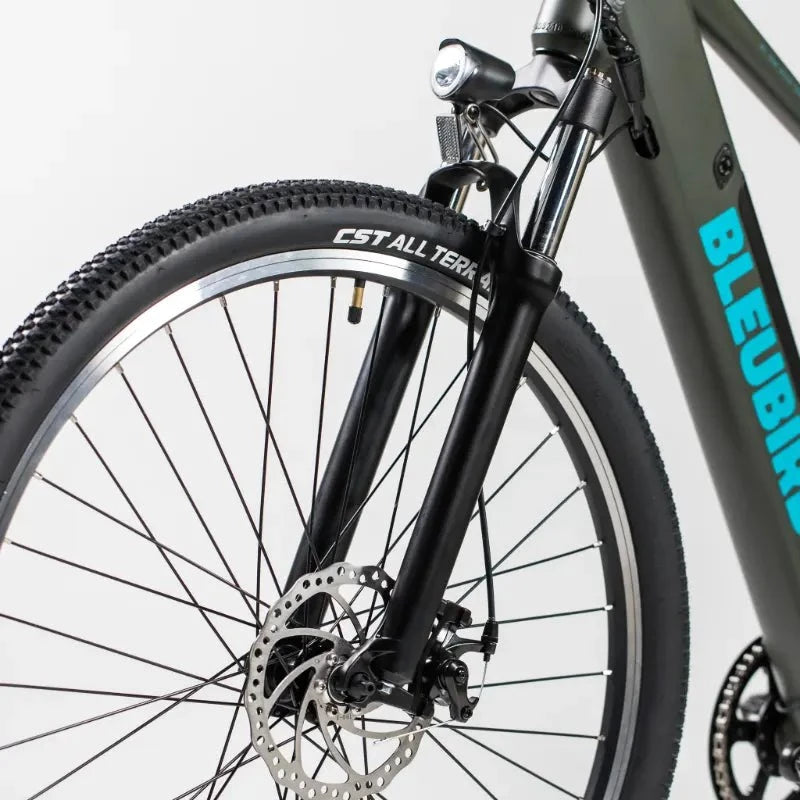

Tyres
CST All Terrain, 1.95", 2.10"
Pedals
Wellgo composite platform, reflectors, black.
Wheels
Black 12 gauge steel spokes, double wall aluminium wheel
